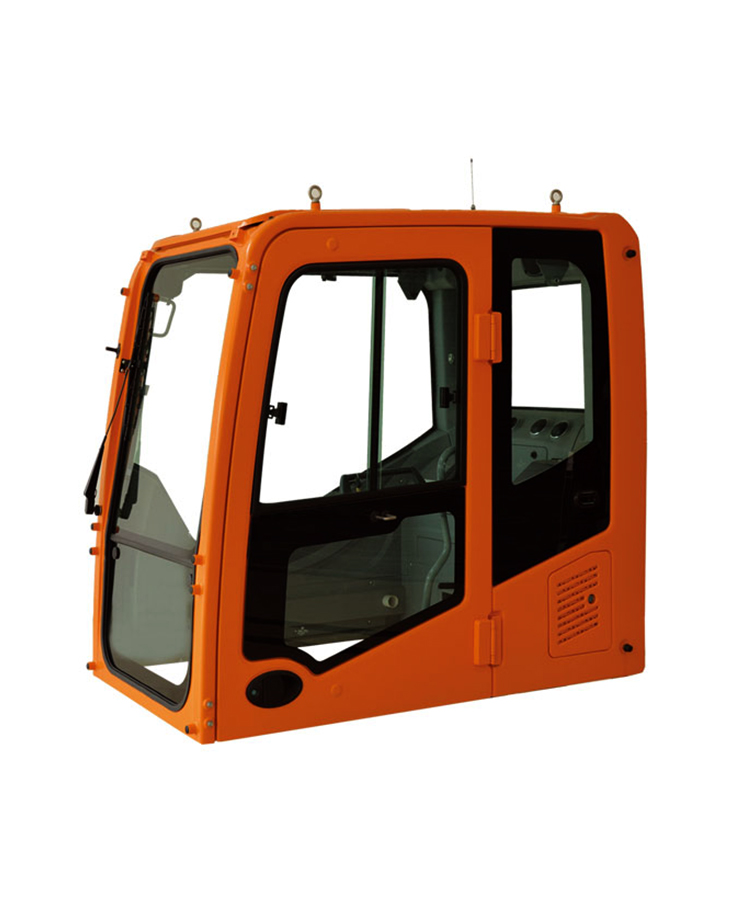

How Cab Protection Apparatus Prevents Injury from Falling Objects

In the demanding environments of construction, mining, demolition, and forestry, heavy machinery operators face constant exposure to hazards posed by falling objects. Rocks, tools, building materials, and debris can dislodge from heights and strike the operator's cab with tremendous force. To mitigate these risks, engineers have developed sophisticated cab protection apparatuses, most notably Falling Object Protective Structures (FOPS). These systems are not merely passive barriers but are engineered through a combination of structural design, material science, energy absorption principles, and rigorous testing to safeguard human life. This article provides a comprehensive examination of the mechanisms and principles through which cab protection apparatuses prevent injury from falling objects.

The Core Design Philosophy: Energy Absorption and Deflection

The fundamental principle behind any cab protection apparatus designed to counter falling objects is the management of kinetic energy. When an object falls from a height, it accumulates kinetic energy proportional to its mass and the square of its velocity. Upon impact with the cab, this energy must be safely dissipated or redirected to prevent it from being transferred to the operator or causing structural collapse of the cab itself.

The cab protection structure is designed to serve two primary functions: absorption and deflection. Absorption refers to the structure's ability to deform in a controlled manner, converting kinetic energy into plastic deformation energy. Deflection refers to the structure's ability to redirect falling objects away from the cab, particularly from vulnerable areas such as the windshield or roof panels. A well-designed cab protection apparatus combines both principles to create a robust safety system.

As highlighted in industry standards, the FOPS structure must be capable of withstanding impacts from objects of specified mass dropped from specified heights, ensuring that the cab maintains its integrity and that the operator's survival space remains uncompromised.

Structural Components of a FOPS System

A Falling Object Protective Structure is typically constructed as a reinforced framework that surrounds the cab. This framework is designed to be significantly stronger than the cab itself, acting as a sacrificial barrier that absorbs impact energy before it can reach the cab's primary structure.

The FOPS system generally consists of a heavy-duty roof structure, often described as a "top lid" or overhead guard, and a front window guard. The roof structure is the primary defense against objects falling from above, while the front guard protects the windshield area from objects that may slide or bounce forward.

The structural members of a FOPS system are fabricated from high-strength steel, selected for its ability to undergo significant plastic deformation without fracturing. This property is critical because a brittle material would shatter upon impact, offering little protection. In contrast, high-strength steel can bend and stretch, absorbing energy throughout the deformation process. As documented in patent literature, a cab protection apparatus includes "a front guard hinge-fixed to a front support frame of the protection structure to be opened or closed so as to protect a front portion of the cab". This design allows for both robust protection and practical access for maintenance.

Some advanced designs incorporate multiple layers of protection. For example, a protective cab may include a first armor plate mounted on the skeleton structure, with provisions for additional layers depending on the required protection level. This modular approach allows for customization based on specific operational risks.

The Mechanism of Energy Absorption

The key to preventing injury lies in how the cab protection apparatus manages the enormous forces generated during an impact. When a falling object strikes the FOPS structure, several energy dissipation mechanisms come into play sequentially.

First, the impact force is transmitted to the structural members of the FOPS. These members are designed to yield and deform in a controlled manner. The plastic deformation of steel consumes a significant portion of the kinetic energy, converting it into heat and permanent structural change. This is the same principle that makes crumple zones effective in automobiles.

Second, the connection points between the FOPS structure and the cab or machine frame are designed to transmit forces to the main chassis. The FOPS must be "securely mounted to the upper frame or main structure of the machine, with the connection points having sufficient strength and rigidity" to prevent detachment during impact. This ensures that the energy is distributed across a wider structural system rather than being concentrated at a single point.

Third, the FOPS structure is designed to maintain a minimum clearance between the deformed structure and the operator. Even after significant deformation, the structure must not intrude into the operator's survival space. This is achieved through careful engineering that determines the necessary height and strength of the protective structure based on the maximum expected impact energy.

Materials and Construction Techniques

The materials used in cab protection apparatuses are selected for their specific mechanical properties. High-strength steel is the most common material due to its excellent strength-to-weight ratio and ductility. However, the choice of material is not uniform across all components. The structural framework may use one grade of steel optimized for strength, while the roof panel may use another grade optimized for impact resistance.

Some applications require additional protection beyond standard FOPS. For instance, protective cabs for military or high-risk civilian applications may incorporate armor plating. As described in one patent, a protective cab includes "a first armor plate" mounted on the skeleton, with the option to add "a second armor plate" for enhanced protection. These armor plates provide ballistic protection in addition to impact protection from falling objects.

The thickness of the protection material is directly proportional to the required protection level. Standards such as ISO 3449 define different protection levels based on the mass and drop height of the test object. A structure certified to a higher protection level will generally use thicker or higher-grade materials to withstand greater impact energies.

The Role of Geometry and Design Features

The geometry of the cab protection apparatus is as important as the materials from which it is constructed. A flat roof panel, for example, is less effective at deflecting falling objects than a curved or sloped design. The shape of the structure influences how impact forces are distributed and whether objects are directed away from the cab or concentrated on a small area.

The front guard, which protects the windshield, is typically designed as a grid or mesh structure rather than a solid panel. This design choice balances protection with visibility. The grid pattern allows the operator to see through the guard while providing multiple load paths for impact forces. As noted in product descriptions, FOPS systems are designed with "great sight lines" to maintain operator visibility while providing robust protection.

The connection between the guard and the cab frame is also carefully designed. In some systems, the front guard is "hinge-fixed to a front support frame of the protection structure to be opened or closed". This hinged design allows for easy access to the windshield for cleaning or maintenance while maintaining structural integrity when closed and locked.

Standards, Testing, and Certification

Cab protection apparatuses are subject to rigorous international standards that define performance requirements and testing protocols. The most relevant standards for FOPS include ISO 3449 and SAE J1043. These standards specify the mass of the test object, the height from which it is dropped, and the allowable deformation of the protective structure after impact.

During certification testing, a FOPS structure is subjected to impact from a test object of specified mass dropped from a specified height. The structure must demonstrate that it can withstand this impact without collapsing into the operator's survival zone. The test also evaluates whether the structure remains securely attached to the machine after impact. Only structures that pass these rigorous tests receive certification markings indicating their protection level.

These standards also address the distinction between FOPS and FOG (Falling Object Guard) systems. A FOPS is typically a stand-alone structure that bolts directly to the machine chassis, while a FOG is a two-piece system that mounts to an existing certified ROPS cab. Both systems must meet the same fundamental performance requirements, but their installation methods differ.

Integration with Other Safety Systems

A cab protection apparatus is most effective when integrated with other safety systems. The most critical of these is the Roll-Over Protective Structure (ROPS). In many machines, the FOPS is mounted to or integrated with the ROPS frame. This combined structure provides protection against both falling objects and rollover accidents.

The integration of FOPS and ROPS creates a comprehensive safety cell that protects the operator from multiple hazards. The ROPS frame provides the structural foundation, while the FOPS adds overhead protection. Together, they create a reinforced capsule that can withstand both the crushing forces of a rollover and the impact forces of falling objects.

In addition to structural integration, modern cabs incorporate other safety features that work in concert with the FOPS. These include laminated or reinforced glass that resists shattering, energy-absorbing interior surfaces that reduce the risk of secondary impact injuries, and secure door latches that prevent the doors from opening during an impact.

Maintenance and Inspection Considerations

The effectiveness of a cab protection apparatus depends on proper maintenance and regular inspection. Over time, exposure to environmental conditions, fatigue from vibration, and minor impacts can compromise the structural integrity of the protection system. Regular inspection is essential to identify cracks, corrosion, or deformation that could reduce the system's ability to protect the operator.

Manufacturers provide guidelines for inspection intervals and procedures, and operators should follow these recommendations diligently. Any damage to the FOPS structure should be repaired or replaced immediately. Unlike cosmetic body panels, a compromised FOPS structure cannot be simply welded or patched; it must be restored to its original specifications to guarantee its performance in an impact.

Cab protection apparatuses prevent injury from falling objects through a carefully engineered combination of structural design, material selection, energy absorption mechanisms, and adherence to rigorous international standards. The Falling Object Protective Structure acts as a sacrificial barrier that absorbs and deflects impact energy, preventing it from reaching the operator or causing catastrophic collapse of the cab.

The effectiveness of these systems lies in their ability to convert kinetic energy into controlled deformation, distributing impact forces across the machine's main structure while maintaining a survival space for the operator. High-strength materials, optimized geometric designs, and secure mounting systems work together to ensure that even under severe impact, the operator remains protected.

As work environments continue to demand higher levels of safety, the evolution of cab protection technology will undoubtedly continue. However, the fundamental principles established through decades of engineering and testing will remain the foundation upon which all future developments are built. For operators working in environments where falling objects are a constant threat, the cab protection apparatus is not merely a piece of equipment—it is a life-saving system that makes the difference between a close call and a tragedy.
