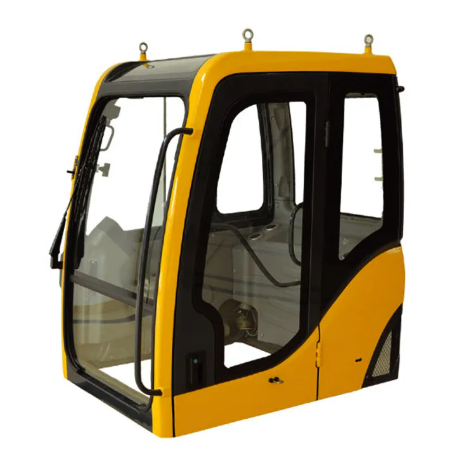

The Operator's Command: Key Design Considerations for an Excavator Cab

The excavator cab is far more than just a protective shell. It is the central nervous system of the machine, the environment where an operator spends long, demanding hours making critical decisions that impact safety, productivity, and profitability. In modern construction, mining, and demolition, the cab's design is a primary determinant of machine effectiveness. A well-designed cab enhances operator performance, reduces fatigue, and improves overall job site safety. Conversely, a poorly conceived cab can lead to diminished output, increased error rates, and even long-term health issues for the operator. Therefore, a holistic, human-centric design approach is paramount.

The key design considerations for an excavator cab can be broadly categorized into five interconnected pillars: Operator Comfort and Ergonomics, Visibility and Safety, Control and Machine Interface, Environmental Control and NVH, and Structural Integrity and Access.

1. Operator Comfort and Ergonomics: The Foundation of Performance

The single most important factor in excavator cab design is the comfort and ergonomic well-being of the operator. An operator who is physically uncomfortable, fatigued, or stressed cannot perform at their peak. This consideration begins with the fundamental geometry of the cab.

The Operator's Seat: This is the single most critical component. It is the operator's primary point of contact with the machine for extended periods. A premium-grade seat is non-negotiable. It must be fully adjustable in multiple dimensions: fore/aft, height, recline, and suspension weight. The suspension system must be sophisticated enough to absorb low-frequency vibrations from rough terrain and high-frequency vibrations from the machine's engine and hydraulic systems. Effective vibration damping is crucial for preventing long-term spinal and back problems. The seat's cushioning must be firm enough to provide support but contoured to distribute pressure evenly, preventing pressure points that lead to numbness and discomfort. Heated and ventilated seats are increasingly considered essential for extreme climates, allowing the operator to maintain a comfortable microclimate regardless of external conditions.

Controls Layout and Reachability: The principle of "reach" is paramount. Every control the operator needs for routine operation—joysticks, foot pedals, auxiliary functions, and even the display screen—must be easily reachable without requiring the operator to lean forward, twist their torso, or extend their arms unsafely. The armrests, to which the primary joysticks are often integrated, must be adjustable in both height and angle to support the operator's arms and shoulders, preventing "static loading" fatigue. The control console itself should be designed to minimize glare and house switches that have a clear, tactile feel, allowing for "blind operation" without taking the operator's eyes off the work area.

Legroom and Entry/Exit: The space within the cab must be generous enough to accommodate a wide range of operator body sizes. There must be ample legroom for the operator to comfortably operate foot pedals without their knees hitting the steering column or dashboard. The cab's design must also prioritize safe and easy entry and exit. Wide, self-cleaning steps with aggressive tread patterns are essential. Handholds and grab rails must be strategically placed and color-contrasted to be easily visible, even when covered in mud or grease. The cab door must open wide and latch securely, and its design should not create a trip hazard.

2. Visibility and Safety: Seeing is Working

An excavator operates in a dynamic, often chaotic, environment. The operator must have a clear, unobstructed view of the work area, the surrounding personnel, and the machine’s own extremities to operate safely and efficiently. This is arguably the most critical safety design aspect.

Glass Area and Pillar Design: A large, wrap-around glass area with minimal visual obstructions is the ideal. The primary challenge is the structural requirement for pillars, especially the A-pillars on either side of the cab and the rear pillar. Designers must use complex cross-sections and high-strength steel to minimize pillar width while maintaining rollover protection (ROPS) and falling object protection (FOPS) integrity. The front windshield and lower window must offer an unimpeded view of the bucket and the ground directly in front of the tracks. The top window (skylight) is critical for working in tall structures or with a raised boom.

Mirror and Camera Systems: Physical mirrors are still mandatory and must be large, vibration-dampened, and positioned to cover the blind spots around the machine's rear, sides, and track area. However, modern high-resolution camera systems are now a near-standard design consideration. A 360-degree surround-view camera system that stitches together feeds from multiple cameras onto the primary display is the gold standard for visibility and safety. Dedicated cameras for specific purposes, such as a side-view camera for pipe laying or a rear-view camera for counterweight clearance, are also highly valuable.

Lighting: The cab's design must integrate an excellent lighting package. LED work lights must be positioned to illuminate the entire work envelope without creating harsh shadows or blinding glare for the operator. Interior lighting must be adjustable and dimmable, allowing the operator to clearly read gauges without impairing their night vision. Properly designed lighting directly contributes to safety and productivity during early morning, late evening, or nighttime operations.

3. Control and Machine Interface: Precision and Intuition

The way the operator interacts with the machine—the "human-to-machine" interface—must be intuitive, responsive, and precise. This is the core of operational efficiency.

Joystick Control: Pilot-operated hydraulic joysticks remain the standard, but electro-hydraulic (EH) proportional controls are becoming more common. These systems allow for fine-tuned mapping of joystick movement to machine function, providing unparalleled precision. The joystick design itself must be ergonomic, fitting comfortably in the operator's hand with buttons and rollers for auxiliary functions (like thumb, tilt bucket, or hammer) located where the operator's thumb and fingers naturally rest.

Display and Telematics: The primary display screen is now a central design feature. It must be high-resolution, sunlight-readable, and anti-glare. The user interface must be intuitive, with logical menus and icons. The operator should be able to quickly view critical machine data (fuel level, coolant temperature, engine RPM, hydraulic oil temperature), performance metrics (fuel consumption, cycle times), and safety information (camera feeds). A dedicated button or soft-key for each major function is preferable to deep menu diving. The screen also serves as the portal for the telematics system, providing real-time diagnostics, location tracking, and maintenance alerts.

Secondary Controls: Switches for lights, wipers, air conditioning, and auxiliary hydraulic circuits must be logically grouped and have distinct tactile characteristics (e.g., a ribbed knob for the fan speed, a smooth knob for the heater). This allows for non-visual operation. A jog dial or a touchpad for navigating menus on the main display is also a common ergonomic feature.

4. Environmental Control and NVH: Creating a Sanctuary

The cab must be a sanctuary from the harsh external environment. This relates directly to operator comfort and long-term health.

HVAC System: A high-performance heating, ventilation, and air conditioning (HVAC) system is essential. It must be powerful enough to quickly cool or heat the cab's large glass area in extreme temperatures. The system must also maintain positive air pressure within the cab to prevent dust, fumes, and particulate matter from entering through seals and gaps. High-efficiency cabin air filters are mandatory, especially in demolition, quarry, or dusty construction sites. The ductwork design must distribute air evenly to prevent hot or cold spots.

Noise, Vibration, and Harshness (NVH): Reducing NVH is a significant engineering challenge. The cab is a resonant chamber that can amplify engine and hydraulic noise. Designers employ sophisticated rubber mounts (isolators) to decouple the cab from the main frame, preventing vibration from transmitting into the cab. Sound-deadening foam and mastics are applied to the cab's interior panels, floor, and roof. The door and window seals must be airtight to minimize wind and mechanical noise. The goal is to achieve a cab that is quiet enough that the operator can communicate with a ground worker via radio without shouting and can work a full shift without experiencing discomfort or hearing fatigue from ambient noise.

5. Structural Integrity and Access: The Ultimate Safety Net

The cab is a primary safety device, and its structure must be rigorously designed to protect the operator.

ROPS and FOPS Compliance: The cab's frame must be certified to international standards for Rollover Protective Structures (ROPS) and Falling Object Protective Structures (FOPS). This means the cab, its pillars, and its roof structure are engineered to withstand immense forces in the event of a machine rollover or a significant impact from falling rocks or debris. This structural integrity is not just about thick steel; it is about the strategic use of high-strength, low-alloy (HSLA) steels in key load paths and crumple zones that can absorb energy while maintaining a survival space for the operator.

Glazing and Guards: The cab's glass is not ordinary glass. It is laminated safety glass for the windshield and side windows, which holds together upon impact. The front lower window often has a polycarbonate guard or a heavy steel mesh guard to protect against flying debris during demolition or breaking operations. The skylight also requires a secondary guard.

Door Latches and Window Egress: In an emergency, the operator must be able to exit the cab quickly. The door latch must be robust to prevent accidental opening during work but must open with a single, intuitive action from the inside. A backup emergency exit (often the skylight or a large side window that opens fully) is a critical design requirement. The operator must be able to break or open a secondary exit if the primary door is jammed after an accident.

In conclusion, designing an excavator cab is a complex, multi-disciplinary challenge that balances human factors, structural safety, and advanced technology. The most effective cab designs are those that treat the operator not as a user, but as a central partner in the machine's performance. By prioritizing comfort through ergonomic seating and controls, ensuring safety through advanced visibility and robust structure, enabling precision through intuitive controls, and creating a comfortable, quiet environment, an excavator cab can transform a machine from a powerful tool into a productive, safe, and even pleasant workplace for the person who operates it every day. This holistic approach is the only path to achieving maximum efficiency and safety on the modern job site.
