What glazing materials are used for excavator cab windows?

2026-05-26 11:22:34

Glazing Materials Used for Excavator Cab Windows: A Comprehensive Analysis

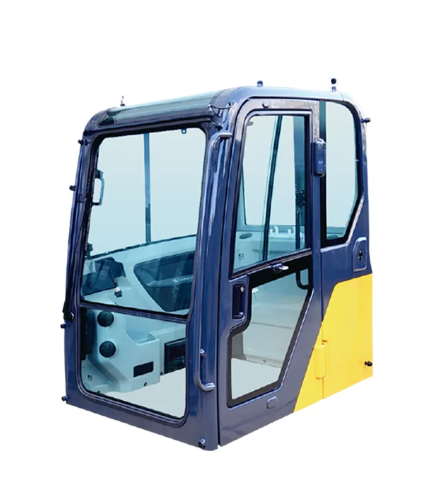

Excavator cab windows serve as a critical interface between the operator and the working environment, providing essential visibility while ensuring protection from external hazards. The glazing materials used in these windows must withstand extreme conditions including impacts from flying debris, temperature fluctuations, vibrations, and exposure to harsh chemicals. This article provides a detailed examination of the primary glazing materials employed in excavator cab windows, analyzing their properties, advantages, and appropriate applications.

Tempered Safety Glass

Tempered glass, also known as toughened glass, is one of the most commonly used glazing materials in excavator cab construction. This material is produced by heating ordinary glass to temperatures exceeding 600°C and then rapidly cooling it through a process called quenching. This thermal treatment fundamentally alters the internal structure of the glass, creating compressive stresses on the surface and tensile stresses in the core, resulting in significantly enhanced mechanical properties.

The strength of tempered glass is remarkable, being approximately five times stronger than standard annealed glass of the same thickness. This characteristic is particularly valuable in excavator applications where the cab windows must resist impacts from stones, debris, and accidental contact with work materials. When tempered glass does break, it fractures into small, relatively harmless granular fragments rather than sharp, dangerous shards. This safety feature significantly reduces the risk of severe lacerations to the operator in the event of glass failure.

Tempered glass also exhibits excellent thermal stability, capable of withstanding rapid temperature changes without cracking. This property is essential for excavators operating in diverse climatic conditions, from extreme heat to freezing environments. The material's high optical clarity ensures that operators maintain a clear, distortion-free view of their surroundings, which is crucial for precise machine control and safety.

In excavator applications, tempered glass is typically manufactured in thicknesses ranging from 4mm to 8mm, with specific dimensions custom-fabricated to fit individual machine models. The glass can be produced with various edge finishes, holes, and cutouts to accommodate mounting hardware, wiper mechanisms, and other accessories. Many manufacturers offer tempered glass products with UV protection coatings to enhance durability and maintain optical clarity over extended service periods.

Laminated Safety Glass

Laminated glass represents another essential glazing material for excavator cab windows, offering distinct advantages in certain applications. This material consists of two or more layers of glass bonded together with an interlayer, typically made of polyvinyl butyral (PVB) or ethylene-vinyl acetate (EVA). The assembly is subjected to heat and pressure in an autoclave, creating a unified composite structure.

The defining characteristic of laminated glass is its ability to maintain structural integrity even when broken. Should the glass layers fracture upon impact, the plastic interlayer holds the fragments together, preventing dangerous shattering and maintaining a barrier against further penetration. This property makes laminated glass particularly suitable for excavator applications where protection from flying debris and falling objects is paramount.

Laminated glass provides enhanced security features, including resistance to forced entry and ballistic threats. While not typically required for standard excavator operations, these properties can be valuable in specialized applications such as mining, demolition, or operations in high-security environments. The interlayer also effectively blocks ultraviolet radiation, protecting operators from harmful UV exposure during prolonged work periods.

One of the significant advantages of laminated glass is its superior acoustic insulation performance. The PVB interlayer dampens sound transmission, reducing the noise levels reaching the operator's ears. In the context of excavator operation, where engine noise, hydraulic system sounds, and environmental noise can reach potentially harmful levels, this acoustic benefit contributes to operator comfort and hearing protection.

For excavator applications in cold climates, laminated glass can be manufactured as a dual-pane unit with an insulating air gap, providing enhanced thermal performance. This configuration helps maintain comfortable cab temperatures, reduces condensation, and improves operator comfort during winter operations. The material also offers excellent resistance to thermal stress, making it suitable for applications involving significant temperature differentials.

Polycarbonate Glazing

Polycarbonate glass, while technically a transparent thermoplastic rather than glass, has emerged as an increasingly popular glazing material for excavator cabs. This material offers a unique combination of properties that make it particularly attractive for heavy equipment applications.

The most notable advantage of polycarbonate is its exceptional impact resistance. Polycarbonate is virtually unbreakable under normal operating conditions, with an impact strength approximately 250 times greater than standard glass and 30 times greater than acrylic. This extraordinary toughness makes polycarbonate ideal for excavators operating in the most demanding environments, such as mining, quarrying, and demolition, where flying debris presents a constant threat to cab integrity.

Weight reduction is another significant benefit of polycarbonate glazing. Polycarbonate is approximately half the weight of glass of equivalent thickness, which contributes to overall machine weight reduction and improved fuel efficiency. For large excavators where every kilogram matters, this weight saving can translate into tangible operational benefits.

Polycarbonate also exhibits excellent weather resistance and UV stability when properly treated. Modern polycarbonate formulations include UV-resistant coatings that prevent yellowing and degradation over time, ensuring long-term optical clarity. The material's flexibility also makes it more resistant to thermal expansion and contraction stresses that can cause glass to crack in extreme temperature environments.

However, polycarbonate does have certain limitations. It is more susceptible to scratching than glass, requiring careful handling and cleaning practices. Many manufacturers address this issue by applying hard coatings that significantly improve scratch resistance. Additionally, polycarbonate may yellow over extended exposure to UV radiation if not properly protected, though modern coating technologies have largely mitigated this concern.

Material Selection Considerations

The choice of glazing material for excavator cab windows depends on multiple factors, including the specific application, operating environment, regulatory requirements, and economic considerations. For general construction and earthmoving applications, tempered glass offers an excellent balance of strength, optical quality, and cost-effectiveness. Its predictable breakage pattern and widespread availability make it the default choice for many manufacturers.

For applications involving higher impact risks or requiring enhanced security, laminated glass provides superior protection through its adhesive interlayer. This material is particularly suitable for excavators operating in mining, tunneling, and demolition applications where flying debris poses a significant threat. The acoustic benefits of laminated glass also make it attractive for applications where noise reduction is a priority.

Polycarbonate represents the premium choice for the most demanding applications, offering unmatched impact resistance and significant weight savings. While the initial cost may be higher than glass alternatives, the extended service life and reduced replacement frequency can offset this investment in harsh operating conditions.

Safety Standards and Regulatory Compliance

Excavator cab windows must comply with relevant safety standards to ensure adequate operator protection. In many jurisdictions, cab glazing must meet impact resistance requirements specified by standards such as ANSI Z87.1 or equivalent international regulations. These standards define testing protocols for impact resistance, optical quality, and other performance parameters.

The cab structure itself must also meet Roll-Over Protective Structure (ROPS) and Falling Object Protective Structure (FOPS) requirements. While these standards primarily address the structural frame, the glazing materials contribute to the overall protective envelope of the cab. Properly selected and installed glazing materials help maintain the integrity of the operator's protected space.

Regular inspection and maintenance of cab windows are essential to ensure continued safety performance. Cracks, chips, or other damage to glazing materials should be promptly repaired or replaced to maintain optical clarity and structural integrity. Many manufacturers recommend periodic replacement of cab windows, particularly in harsh operating environments where material degradation may occur over time.

Excavator cab windows employ three primary glazing materials, each with distinct characteristics suited to different operational requirements. Tempered steel glass offers high strength and safe breakage patterns at a moderate cost, making it suitable for general applications. Laminated glass provides enhanced impact resistance, acoustic insulation, and UV protection through its adhesive interlayer construction. Polycarbonate glazing delivers exceptional impact strength and weight savings for the most demanding environments. The selection of appropriate glazing material requires careful evaluation of the specific operating conditions, safety requirements, and economic factors involved in each application. As material technology continues to advance, excavator cab windows will likely incorporate increasingly sophisticated glazing solutions that further enhance operator safety, comfort, and productivity in the challenging environments where these machines operate.
