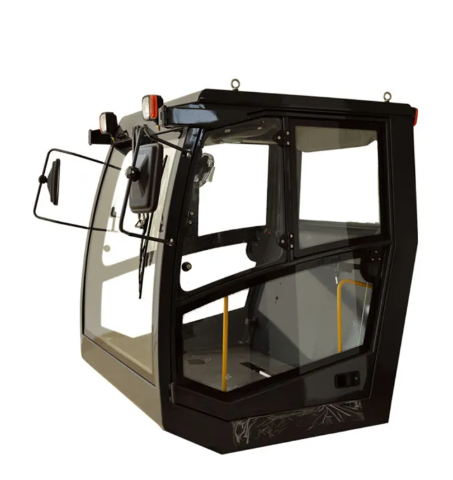

What materials are commonly used for road roller cabs to ensure strength and weather resistance?

2026-04-20 10:15:16

Road rollers operate in some of the most demanding environments encountered by construction machinery. Their cabs must provide uncompromising protection for the operator while enduring constant vibration, heavy impacts, exposure to harsh weather, and contact with abrasive materials. The achievement of this dual mandate—strength and weather resistance—is fundamentally rooted in the careful selection and application of materials. Each component of the cab, from its structural skeleton to its glazing and seals, utilizes materials chosen for their specific physical, chemical, and environmental properties. Understanding these material characteristics reveals how modern Road Roller Cabs are engineered to be sanctuaries of safety and durability.

The Primary Framework and Outer Shell: The Foundation of Strength

The core requirement for any road roller cab is structural integrity. It must act as a protective cage, resisting deformation during a rollover or collision and withstanding the everyday bumps and scrapes of a construction site. This foundational strength is derived from metallic materials, primarily steel and aluminum, each offering a distinct set of characteristics.

Structural steel forms the backbone of most heavy-duty cabs. Varieties such as Q235 or Q345 are frequently employed for their exceptional yield strength and high tensile strength. These steels possess a rigid molecular structure that allows them to absorb and distribute immense energy without catastrophic failure. When shaped into a roll-over protective structure (ROPS), steel provides the necessary ductility and toughness to prevent collapse, creating a robust survival space for the operator. Its inherent density contributes to mass, which in turn resists bending and warping under load. To combat the inevitable threat of corrosion from water, de-icing salts, and atmospheric pollutants, steel components undergo surface treatments. Galvanization, a process of applying a protective zinc coating, creates a sacrificial barrier against rust. Alternatively, advanced powder coating provides a thick, resilient polymer layer that seals the metal from moisture and corrosive agents, preserving the steel's structural strength over time.

In pursuit of weight reduction without a significant sacrifice in strength, aluminum alloy is often used, particularly for complete cab modules or large body panels like doors and roofs. Aluminum’s key characteristic is its impressive strength-to-weight ratio. It is significantly lighter than steel, which can contribute to overall machine efficiency. Its natural oxide layer provides a baseline level of corrosion resistance, making it highly durable in wet and humid conditions. However, pure aluminum is too soft for structural applications. Therefore, alloys are created by adding elements like magnesium, silicon, and copper, which enhance its stiffness and hardness. While an aluminum structure can be engineered to meet strength standards, it often requires more complex geometric design or additional internal bracing compared to a steel equivalent to achieve the same level of impact resistance. Fiberglass-reinforced plastic, or FRP, is another material seen in certain cab applications, typically as bolt-on enclosures. Its primary characteristics are light weight and immunity to corrosion. It can be molded into complex curved shapes that improve visibility around the machine. Yet, FRP lacks the intrinsic impact resistance of metals; therefore, it is almost always mounted onto a robust steel subframe to ensure it meets the mandatory safety requirements for operator protection.

Transparent Armor: The Strength and Resilience of Glazing

The windows and windshield are critical components where material choice balances the conflicting needs of maximum visibility, high impact resistance, and long-term weather endurance. The transparent material must remain clear and intact in the face of flying debris, accidental impacts, and prolonged exposure to ultraviolet radiation and weathering.

Laminated safety glass represents the industry standard for OEM windshields due to its sophisticated layered construction and resultant characteristics. It is composed of two sheets of annealed or tempered glass bonded together with a tough, flexible polyvinyl butyral (PVB) interlayer. The glass provides rigidity and hardness, while the PVB interlayer is the key to its safety and weather-resistant qualities. In the event of an impact that breaks the glass, the PVB layer holds the shattered fragments in place, preventing them from entering the cab and causing injury. This property, known as retention, is its most crucial safety characteristic. Furthermore, the interlayer acts as a permanent barrier against moisture and gases, making the laminated unit highly impervious to fogging and ensuring long-term optical clarity. It also provides excellent sound insulation, dampening external noise. For side and rear windows, tempered glass is frequently used. Through a rapid heating and cooling process, the glass is put into a state of compressive stress, making it four to five times stronger than standard glass. Upon breakage, it crumbles into small, granular chunks instead of sharp shards, minimizing the risk of lacerations. Its smooth, hard surface also resists scratching and is relatively easy to clean, maintaining good visibility.

For applications prioritizing extreme impact resistance, such as retrofitted or specialized cabs, polycarbonate or acrylic plastics are employed. These materials exhibit remarkable toughness and resilience. Polycarbonate, in particular, is renowned for being virtually unbreakable, possessing an impact resistance up to 200 times greater than glass. Its lightweight nature is another advantage. However, these polymers have inherent characteristics that require mitigation. They are susceptible to scratching, which can quickly degrade visibility, and prolonged UV exposure causes them to yellow and become brittle. Therefore, their use necessitates the application of hard-coated, abrasion-resistant surfaces and specialized UV-inhibiting films to preserve their optical properties and structural integrity throughout their service life.

The Critical Barrier: Sealing Systems and Their Material Properties

A road roller cab is only as strong as its weakest seal. The seals around doors, windows, and access panels form the primary defense against wind, rain, dust, and excessive noise. The effectiveness of this barrier is entirely dependent on the material characteristics of the sealing components, which must remain flexible and functional across a vast temperature range.

Ethylene Propylene Diene Monomer (EPDM) rubber is the undisputed champion for this application due to its superlative environmental resistance. Its molecular structure is inherently stable and resistant to degradation from ozone, sunlight, and extreme temperatures, typically remaining flexible from well below freezing to very high heat. This weathering resistance ensures that EPDM seals do not crack, harden, or shrink over time, thus maintaining a consistent compression seal. It also possesses excellent water repellency and resistance to steam and mild chemicals, making it ideal for the moist, dirty environment of a construction site. While EPDM excels in weathering, other rubber types are chosen for specific interfacial challenges. Nitrile rubber (NBR) is characterized by its outstanding resistance to petroleum-based oils and fuels. Where seals might come into contact with hydraulic fluids or engine lubricants, NBR is preferred over EPDM. Silicone rubber (VMQ) boasts the widest operating temperature range of all elastomers, making it suitable for cabs operating in exceptionally cold or hot climates, though it is generally less mechanically robust than EPDM. Thermoplastic polyurethane (TPU) is a modern material gaining popularity for its unique combination of high elasticity, exceptional tear strength, and excellent abrasion resistance, allowing it to withstand the physical wear of repeated opening and closing cycles.

The design of the seal itself, often a bulb or lip profile, works in concert with the material's properties. When a door or window is closed, the seal is compressed, and the inherent memory and resilience of the rubber push back against the frame, creating a dynamic, airtight, and watertight barrier that is crucial for both operator comfort and the longevity of the cab's interior.

Integrating Comfort and Durability

Beyond the primary structures, material choices extend to enhancing operator comfort and protecting the cab's integrity. Mounting points for the cab are isolated from the main chassis using rubber or polyurethane isolators. These materials are specifically chosen for their viscoelastic properties, meaning they effectively absorb and dissipate vibrational energy. This isolation protects the cab structure from fatigue cracking and, more importantly, shields the operator from harmful whole-body vibrations. Internal surfaces are often lined with multi-layer composites that include a dense, sound-deadening foam bonded to a durable fabric or vinyl skin. This material system addresses acoustic comfort by absorbing engine and mechanical noise, while the outer skin provides a cleanable surface that resists wear and tear.

In conclusion, the strength and weather resistance of a road roller cab are not the product of a single material, but of a carefully orchestrated system where each component's material characteristics are matched to its function. From the high-strength, corrosion-protected steel frame to the impact-retaining laminated glass and the all-weather resilience of EPDM seals, every choice is deliberate. This holistic approach to material science ensures that the operator is encased in a protective environment that remains secure, comfortable, and clear-sighted, regardless of the punishing conditions outside.
