Materials Commonly Used in the Construction of Heavy Equipment Cabs

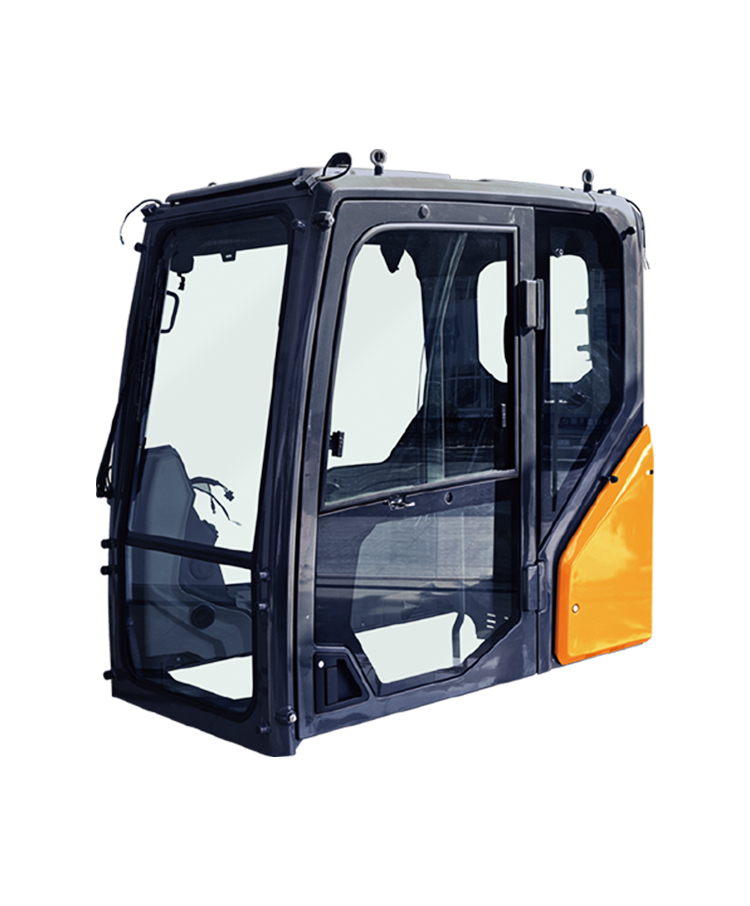

The Operator Cab of heavy equipment—whether for mining trucks, construction excavators, agricultural tractors, or forestry machinery—is far more than a simple enclosure. It is a critical safety structure that must protect the operator from falling objects, rollovers, extreme temperatures, noise, and environmental contaminants. The choice of materials in cab construction directly influences the vehicle's weight, fuel efficiency, structural integrity, corrosion resistance, noise insulation, and overall lifecycle cost. This article provides a comprehensive examination of the materials commonly used in the construction of heavy equipment cabs, exploring their properties, applications, and the engineering considerations that guide their selection.

Steel: The Traditional Backbone of Cab Construction

Steel remains the most widely used material in heavy equipment cab construction, serving as the primary structural framework for the vast majority of industrial and commercial vehicles. The dominance of steel is rooted in its exceptional strength, durability, and cost-effectiveness.

High-Strength Steel for Structural Integrity

High-strength steel is the material of choice for the cab's load-bearing structure, including the frame, pillars, roof canopy, and floor pan. In applications such as open-pit mining excavators and large wheel loaders, cabs are constructed from high-tensile steel with optimized welds and reinforcements. This material is selected for its high yield strength, which is essential for protecting the operator in the event of a rollover or a large rock strike. The material configuration for open-pit cabs emphasizes FOPS (Falling Object Protective Structures) requirements, where high-tensile steel provides the necessary balance between strength and weight.

In underground mining environments, the requirements are even more demanding. Cabs for underground equipment, such as shuttle cars and continuous miners, often specify triangular cross-section tubing for the cab frame. This geometric configuration provides superior torsional rigidity and creates a shearing edge that can break up falling material before it impacts the operator. The canopy is constructed of heavy-duty plate metal combined with this triangular tubing to create a safety cage capable of withstanding significant point loads. Heavy metal mesh screens are used instead of solid panels in some areas to maintain visibility while protecting against falling debris, relying on the high tensile strength of the woven metal.

Evolution of Steel Grades

The steel used in modern cabs is fundamentally different from that used decades ago. According to material technology experts, today's steel is significantly more durable and easier to forge, allowing manufacturers to achieve required strength levels with less material. This has enabled substantial weight reductions without compromising safety. Advanced surface treatments, including galvanization and multi-layer paint systems, protect steel components from corrosion, extending the service life of the cab in harsh environments.

Composite Materials: The Lightweight Revolution

Composite materials have emerged as a transformative force in heavy equipment cab construction, offering significant advantages in weight reduction, corrosion resistance, and design flexibility. The adoption of composites in truck and equipment cabs represents one of the most significant material shifts in the industry.

Sheet Molding Compound and Related Materials

Sheet Molding Compound (SMC), Bulk Molding Compound (BMC), and Continuous Impregnation Compound (CIC) have become the materials of choice for many cab components. These composite materials offer a unique combination of properties: low density, excellent rigidity, high-temperature tolerance, corrosion resistance, and the ability to be painted online. For leading truck manufacturers including Renault, Daimler-Chrysler, MAN, DAF, Volvo, Scania, and Volkswagen, entire cab assemblies are now manufactured from SMC.

The cab components commonly produced from SMC include front panels, bumpers, air deflectors, steps, toolboxes, rear wings, side guards, and side spoilers. The material's excellent formability allows designers to create curved and irregular shapes that would be difficult or impossible to achieve with stamped metal. This design freedom enables improved aerodynamics and aesthetic differentiation.

The Volvo Composite Cab Initiative

A landmark project in composite cab development was the collaboration between Volvo Trucks North America and TPI Composites Inc., which aimed to create composite cabs using Volvo's cab and sleeper design. The reduced weight of the composite cab was expected to increase fuel efficiency in commercial trucks and enable army vehicles to carry heavier armor. Composite materials also resist corrosion, provide better insulation, and may offer a quieter sleeping environment for resting drivers.

The project utilized TPI's patented SCRIMP (Seemann Composites Resin Infusion Molding Process) technology, a vacuum-assisted resin transfer molding process. The cabs consisted of three main pieces: a one-piece composite sleeper, a composite roof, and Volvo's steel cab modified to attach to the composite sleeper. This hybrid approach demonstrated how composites could be integrated with traditional steel structures to achieve optimal performance.

Carbon Fiber and Advanced Composites

Looking toward the future, carbon fiber composites represent the next frontier in cab material technology. Materials experts predict that carbon fiber reinforced composites will increasingly be applied to load-bearing structures, cab interiors, and even leaf springs. The use of renewable carbon fiber composites is anticipated, offering exceptional strength-to-weight ratios. These advanced materials will enable further weight reduction while maintaining or improving structural performance. However, current cost considerations limit their application primarily to high-end or specialty vehicles.

Glass and Transparent Materials

The windows and windshields of heavy equipment cabs require materials that combine optical clarity with exceptional impact resistance and environmental durability.

Toughened and Laminated Glass

Enclosed cabs for heavy equipment typically utilize toughened glass or polycarbonate materials designed to withstand impacts from flying debris, rocks, and other projectiles. Laminated glass, consisting of two glass layers bonded with a polyvinyl butyral interlayer, provides additional safety by preventing glass shards from entering the cab upon breakage. This construction is critical for applications in demolition, construction, and forestry where the risk of high-velocity impacts is constant.

Polycarbonate Windows

Polycarbonate, a transparent thermoplastic, offers superior impact resistance compared to glass while being significantly lighter. This material is often used in applications where weight reduction is critical or where the cab is exposed to extreme impact hazards. However, polycarbonate is more susceptible to scratching than glass, requiring careful maintenance and sometimes protective coatings to maintain optical clarity over time.

Aluminum and Light Metals

Aluminum and other light metals are increasingly incorporated into cab construction as part of the ongoing lightweighting trend in the heavy equipment industry.

Applications in Cab Construction

Aluminum is commonly used for non-structural components such as steps, grab handles, access platforms, and interior trim. In some designs, aluminum sheet is used for cab panels where weight reduction is prioritized over the extreme strength requirements of primary structural elements. For passenger buses and some truck applications, aluminum is used for stent (support brackets) and parts (components).

Magnesium Alloys

Magnesium, the lightest structural metal, is being investigated for applications such as table surfaces, interior brackets, and trim components. While magnesium offers exceptional weight savings, its use is limited by higher material costs and specific manufacturing requirements, including proper corrosion protection when in contact with other metals.

Insulation and Interior Materials

The interior of a modern heavy equipment cab is a complex assembly of materials designed to provide comfort, noise reduction, thermal insulation, and safety.

Noise and Thermal Insulation

Modern enclosed cabs are designed to significantly reduce the noise reaching the operator, diminishing the impact of high-decibel sounds from the engine, hydraulics, and surrounding environment. Sound-dampening materials, including foam composites and mass-loaded vinyl barriers, are incorporated into the cab structure. Thermal insulation materials maintain a comfortable interior temperature regardless of external conditions, working in conjunction with climate control systems.

Interior Trim and Seating Materials

Interior surfaces utilize materials that meet stringent safety standards, including flame-retardant and low-emission requirements. Upholstery materials for seats, headliners, and door panels must withstand years of exposure to UV radiation, temperature extremes, and physical wear while maintaining their appearance and protective properties. Ergonomic considerations drive the selection of materials for armrests, control surfaces, and floor coverings.

Seals, Gaskets, and Environmental Protection

The effectiveness of an enclosed cab depends critically on its ability to seal out dust, water, and other environmental contaminants. Elastomeric materials, including EPDM rubber, silicone, and thermoplastic elastomers, are used for door seals, window gaskets, and access panel gaskets. These materials must maintain their sealing properties across a wide temperature range and resist degradation from UV exposure, ozone, and chemical exposure common in industrial environments.

Material Selection Considerations

The choice of materials for a heavy equipment cab is governed by a complex interplay of factors that vary by application, market, and regulatory environment.

Application-Specific Requirements

In underground mining, the primary threats are falling rocks from the roof and lateral crushing from tunnel collapses. Cab material configuration prioritizes extreme structural rigidity and localized impact resistance. The triangular tubing and heavy plate metal construction reflect this focus on crushing resistance.

In open-pit mining, the risks are more about rollovers on steep grades or large rocks falling from blasting faces. High-tensile steel with FOPS certification provides the necessary protection while maintaining acceptable weight.

Market Drivers

In emerging markets, demand for construction equipment cabs is primarily driven by rapid urbanization and infrastructural development. Regulatory changes pushing adherence to safety standards have led manufacturers to develop modernized cabs equipped with advanced technology. In mature markets, the focus is on replacing aging fleets and adopting new technologies, including environmentally-friendly machines with state-of-the-art materials and design.

Cost and Production Volume

The cost-effectiveness of different materials varies significantly with production volume. For SMC components, the cost is lower than sheet metal when annual production is below approximately 130,000 units. In the truck manufacturing sector, where production volumes rarely reach this threshold, SMC offers a compelling economic advantage over stamped metal panels. This cost consideration has driven the widespread adoption of composites in European truck manufacturing.

The materials used in heavy equipment cab construction represent a sophisticated balance of strength, weight, durability, cost, and manufacturability. Steel remains the backbone for structural safety, providing the essential protection against rollovers and falling objects that operators depend on. Composite materials, particularly SMC and advanced resin-infused structures, have revolutionized cab design by enabling weight reduction, corrosion resistance, and design freedom that metal alone cannot achieve. Glass and polycarbonate provide the necessary visibility and impact protection, while aluminum and magnesium offer targeted weight savings for specific applications.

As the industry continues to evolve, driven by demands for greater fuel efficiency, lower emissions, enhanced operator comfort, and extended equipment life, the material palette for cab construction will continue to expand. The future points toward greater integration of multiple materials within a single cab structure—steel for the safety cage, composites for exterior panels, advanced polymers for interior components, and smart materials that can adapt to environmental conditions. This multi-material approach, combined with innovative manufacturing processes, will define the next generation of heavy equipment cabs, creating safer, more comfortable, and more efficient operator environments for the challenging applications that drive global industry.
